Embed File or Media Dialog Box

The Embed File or Media dialog box offers an extensive complement of tools for adding media files, plug-ins, scripts, or special code to your web project.

To open the Embed File or Media  dialog box, select Object>Embed File or Media, or click the Embed File or Media button: in the Tools Bar. You may also double-click a file or media object in the Work Window or select it and then press Enter to open the Embed File or Media dialog box.

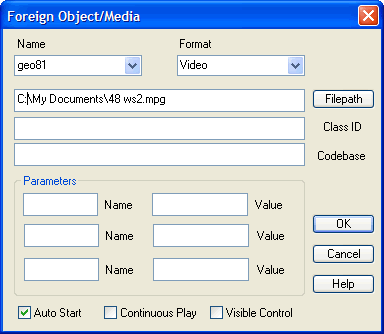

Add multimedia, plugins, scripts, or other external files using the Embed File or Media dialog box.

Options on the Embed File or Media dialog box include the following:

Field/Control Description
Name Displays the name of the file or media object currently selected for editing. You may select any file or media object from the drop-down menu to edit. This name is a geometry name and can also be seen in the Geometry Editor dialog box.
You may rename an object by typing over the displayed name in the Name box.
Format Select from the drop-down menu the type of file or media object you want to embed on the page. Select from Publish File, General Plug-In, HTML (IFrame), SVG, Java Applet, Shockwave, Flash, QuickTime, RealAudio, Video, Sound/Music, or Other File Type. For more information, see Embedded files and media objects.
Filepath Click to display the Open dialog box, allowing you to browse for the file you want to insert. Or, you may enter the path and file name in the field (not recommended).
Page List Click to enable a drop-down menu, allowing you to select a page in the current project to insert in the object. Available only with HTML (IFrame) or SVG format.
Class ID Optional. Enter the reference name of the control that the user’s browser can automatically download if it is not already installed. The browser will need this information in order to run the application. The Codebase and Classid parameters work together and are application-specific. If you are unsure what to enter, consult the application’s help documentation.
Codebase Optional. Enter the location of the control that the user’s browser can automatically download if it is not already installed. The browser will need this information in order to run the application. The Codebase and Classid parameters work together and are application-specific. If you are unsure what to enter, consult the application’s help documentation.
Parameters Enter Name and Value parameters for the embedded object.
Auto Start Click to checkmark to set the embedded media object to execute without user intervention. Available only with General Plug-In, Java Applet, Shockwave, Flash, QuickTime, RealAudio, Video, Sound/Music, or Other File Type format.
Continuous Play Click to checkmark to set the embedded media object to play in the user’s browser without stopping unless stopped by the user. Available only with General Plug-In, Java Applet, Shockwave, Flash, QuickTime, RealAudio, Video, Sound/Music, or Other File Type format.
Use Scroll Bar Click to checkmark to enable scrolling in the HTML IFrame. Available only with HTML (IFrame) format.
Visible Control Click to checkmark to make frame borders visible where the object is embedded in the browser. This varies based on format. For IFrames is shows the border, for sound it shows the control (play, pause, etc. buttons) or makes it invisible. For video it shows or hides the buttons (the video image is always visible). For flash it shows the full (right-click) menu vs. the short menu. Click to un-checkmark to hide frame borders. Available only with General Plug-In, HTML (IFrame), Java Applet, Shockwave, Flash, QuickTime, RealAudio, Video, Sound/Music, or Other File Type format.
OK Click to accept the current settings and exit the dialog box.
Cancel Click to cancel the operation and close the dialog box.
Help Click to open a context-sensitive help topic.
